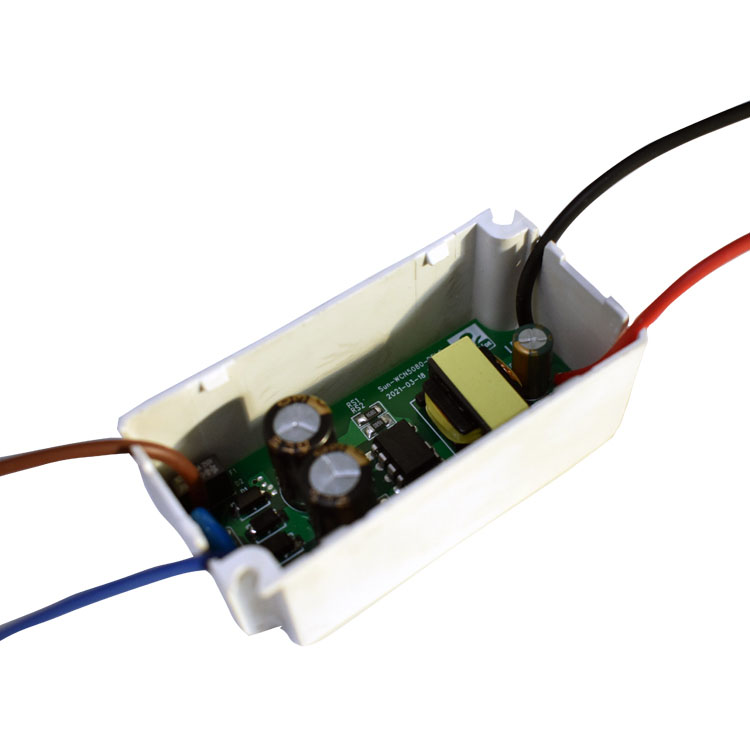

External non-isolated 50W LED panel lamp ceiling lamp wall lamp without stroboscopic driver

Product No：Sun-WCN5080-DFLC

Input Range：AC85-265V
Ouput Voltage：DC36-80V
Type Current：350-550mA
Dimension(L*W*H)：70*34*28mm
Certified：NO
Hard Wire：4leads
Circuit Type：Non-isolated circuit
Weight：60g

Descripiton
Selection Reference
Inquiry

I built-in LED power supply, compact design II non-isolation scheme III output overload protection V output short circuit protection VI over-temperature protection function Ⅶ applicable to LED ceiling lamp, downlight, ceiling lamp, panel lamp and floodlight

Product No	AC Input Range（Vac）	Max. Pout（W）	Vout Range（Vdc）	Full Power Vout Range（Vdc）	Iout（mA）	THD	PFC	Eff
Sun-WCN5080-DFLC	85-265	44	36-80	36-75	550	20%	0.6	90%
