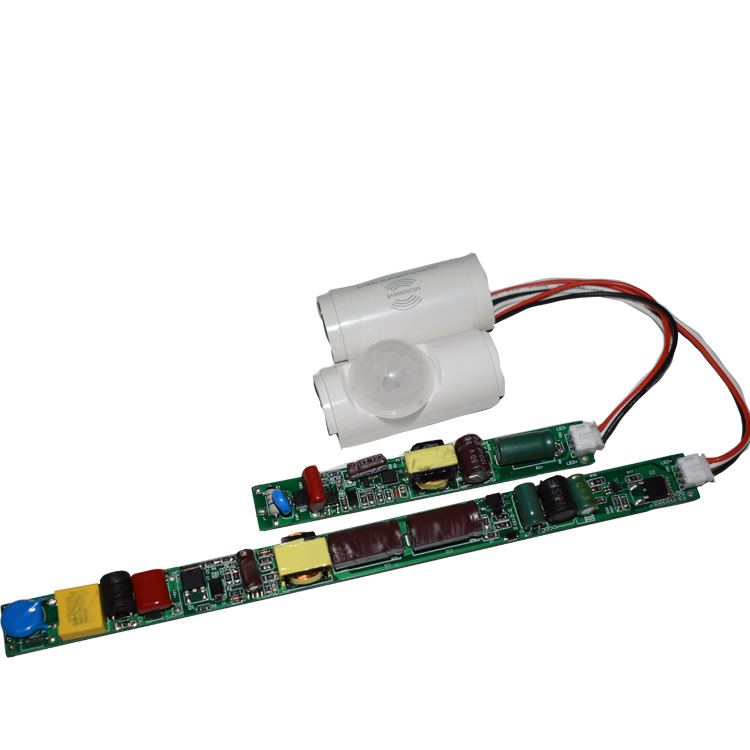

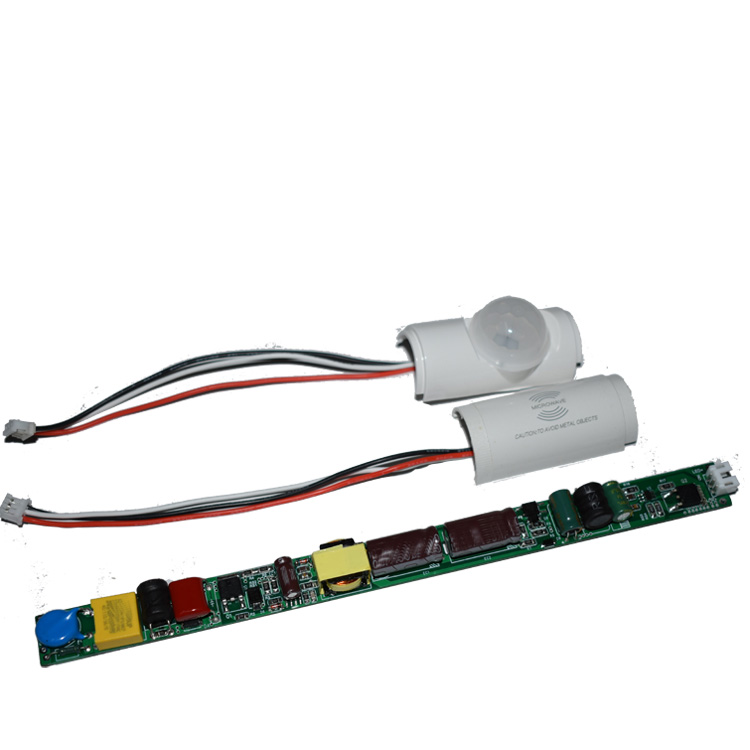

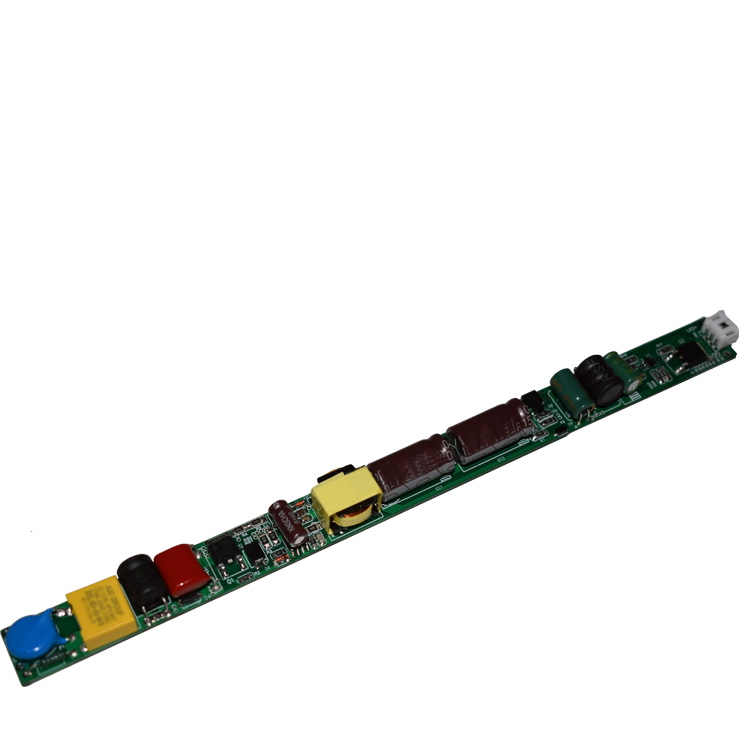

I LED fluorescent lamp power efficiency> 84%, PFC>0.98 no stroboscopic, applicable to human body induction LED driving lamps II non-isolation scheme conforms to EMC requirements III output overload protection V output short circuit protection VI over-temperature protection function Ⅶ induction mode, all dark or slightly bright after people leave optional delay time 1-180s adjustable conventional 30 seconds VIII infrared human body induction and radar microwave induction universal applicable to T8 T10 lamp tube
|
Product No.
|
AC Input Range(Vac)
|
Max. Pout(W)
|
Vout Range(Vdc)
|
Full Power Vout Range(Vdc)
|
Iout(A)
|
THD(Typ.)
|
PF(Typ.)
|
Eff.(Typ.)
|
|
Sunhotion-TCP2580-PGMT
|
AC85-265V
|
DC85V
|
DC40-80V
|
DC40-80V
|
320mA
|
<20%
|
>0.98
|
>84%
|
