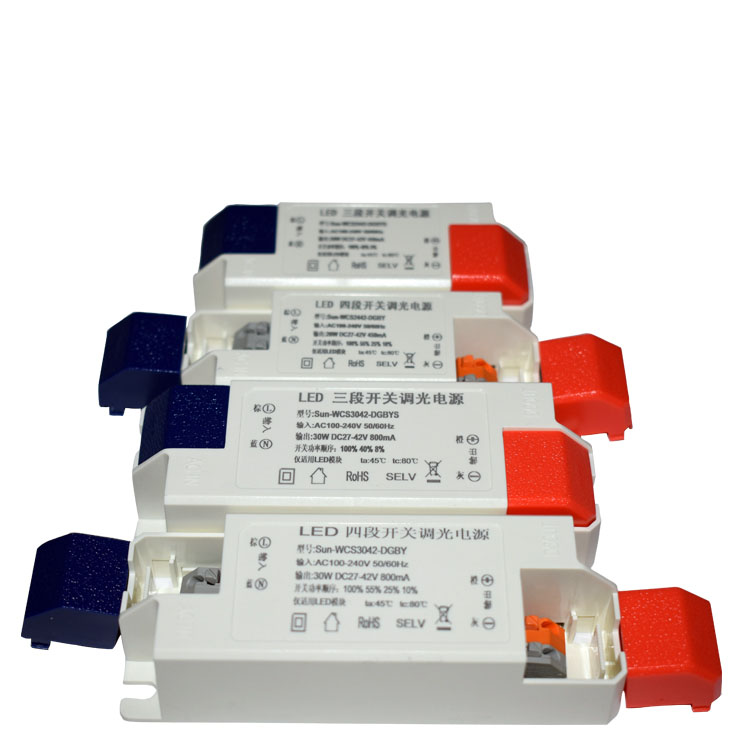

Led section switch dimming power supply 3 / 4 section switch dimming power supply 30W

    • Product model: sun-wcs2442-dgby
      Input voltage: ac120-265v
      Output voltage: dc27-42v
      Typical current: 450mA
      Dimension (L * w * h): 96x36x24mm
      Terminals: terminals
      Circuit type: isolated circuit
      Weight: 42g

I isolated led three-stage and four-stage switch dimming power supply, independent compact design II 3-stage or 4-stage switch dimming, 3-stage dimming brightness 100% - 40% - 8% 4-stage dimming brightness 100% - 55% - 25% - 10% III output overload protection V output short circuit protection VI over temperature protection function VII suitable for 24W 20W 15W led downlight, ceiling lamp panel lamp and wall lamp
Product No
AC Input Range

(Vac)
Max. Pout(W) Vout Range(Vdc) Full Power Vout Range(Vdc) Iout(mA) THD(Typ.)
PF(Typ.)
Eff.(Typ.)
 Sun-WCS3042-DGBY  120-265 30  27-42   27-420 750  20%  0.6   87%
Sun-WCS3080-DGBY
120-265
25 60-80
60-75
320
20%
0.6 87%
