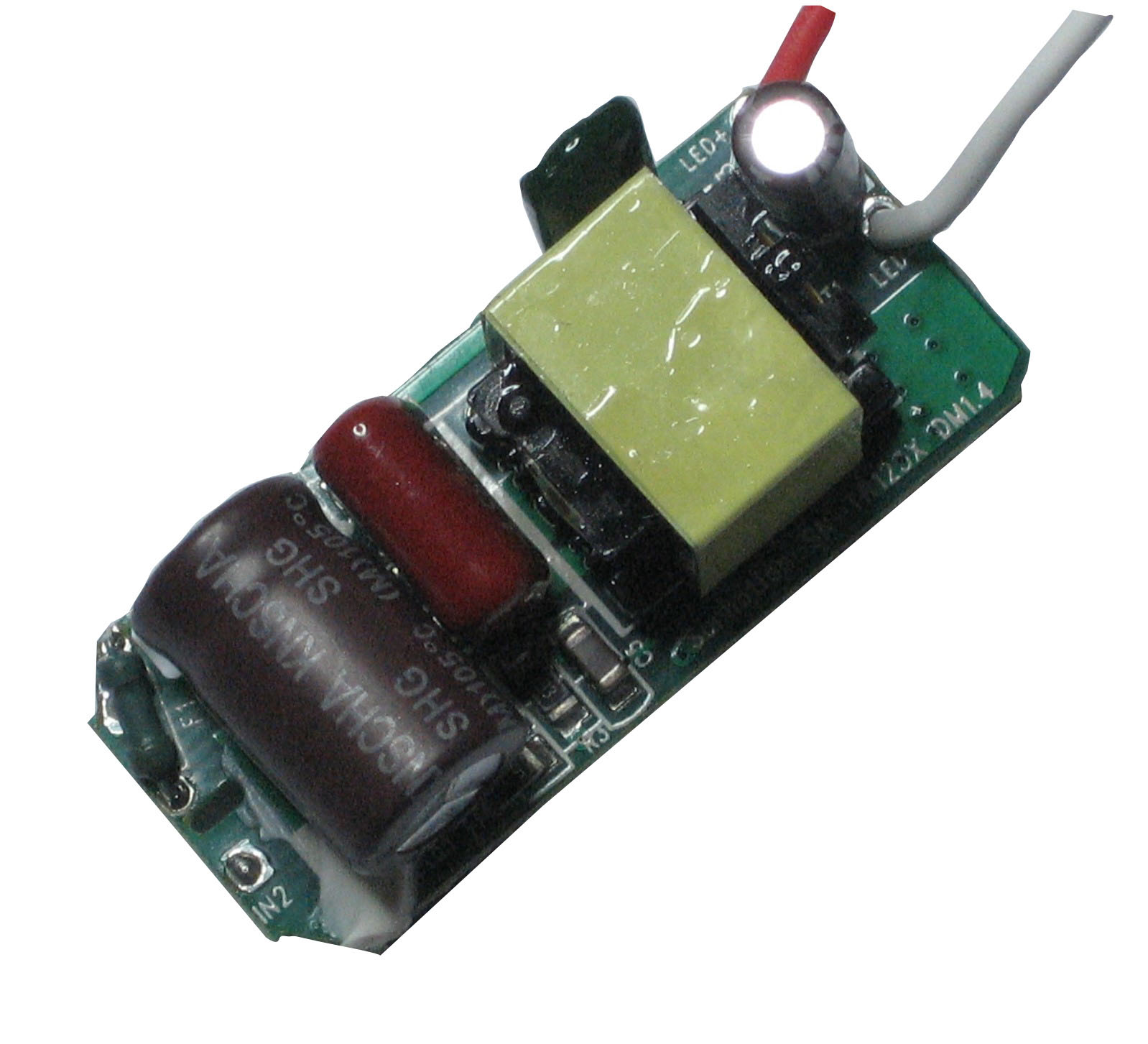

LED fluorescent tube thyristor dimming power supply

- Product model: sun-18pma12 * 2w-dm
  Input voltage: ac200-240v
  Output voltage: dc30-40v
  Typical current: 120-550ma
  Size (L * w * h): 296x17x10mm
  Connector: without wire
  Circuit type: isolated circuit
  Weight: 50g

Ⅰ applicable to common thyristor dimmer front and rear phase cut LED dimming Ⅱ meeting EMC and safety regulations Ⅲ isolated power supply Ⅳ safe no-load protection device Ⅴ output overload protection Ⅵ output short circuit protection Ⅶ over temperature protection function Ⅷ compact design IX dimming range 1... 100% Ⅹ applicable to LED fluorescent lamp

Product No	AC Input Range（Vac）	Max. Pout（W）	Vout Range（Vdc）	Full Power Vout Range（Vdc）	Iout（mA）	THD(Typ.)	PF(Typ.)	Eff.(Typ.)
Sun-18PMA12*2W-DM-H	200-240	22	30-40	30-40	550	20%	0.98	81%
Sun-18PMA12*2W-DM-L	100-120	22	30-40	30-40	550	20%	0.98	81%
