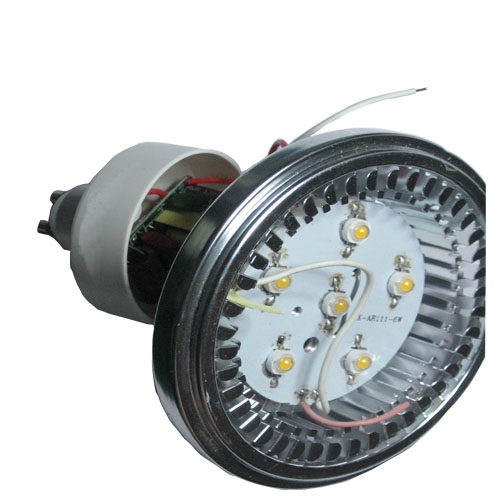

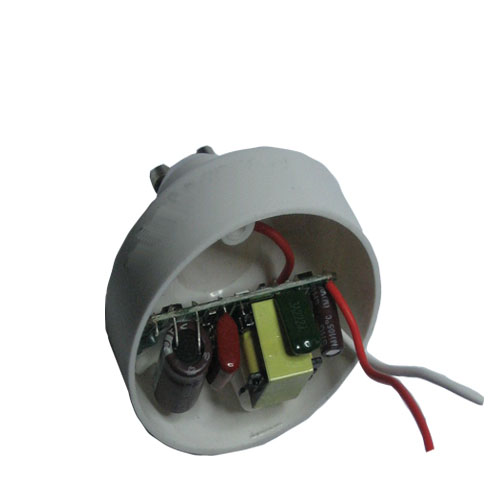

AR111 high voltage LED thyristor dimming power supply

- Product model: sunshine-sn-tr123x-3
  Input voltage: AC85-265V
  Output voltage: dc16-40v
  Typical current: 160-300ma
  Size (L * w * h): 44x20x18mm
  Connector: 2 leads
  Circuit type: non isolated circuit
  Weight: 15.5g

Ⅰ applicable to the front and rear phase cutting LED dimming of thyristor dimmer Ⅱ national half scheme non isolated power supply Ⅲ no-load non burning lamp beads Ⅳ safe no-load protection device Ⅴ output overload protection Ⅵ output short circuit protection Ⅶ over temperature protection function Ⅷ compact design Ⅷ dimming range 1... 100% Ⅹ applicable to LED bulb lamp spotlight AR111 dimming lamp cup

Product No	AC Input Range（Vac）	Max. Pout （W）	Vout Range（Vdc）	Full Power Vout Range（Vdc）	Iout（mA）	THD(Typ.)	PF(Typ.)	Eff.(Typ.)
Sunhotion-SN-TR123X-3	85-265	12	16-40	16-40	300	20%	0.55	75%
Sunhotion-SN-TR123X-4	85-265	12	16-25	16-24	450	20%	0.55	75%
