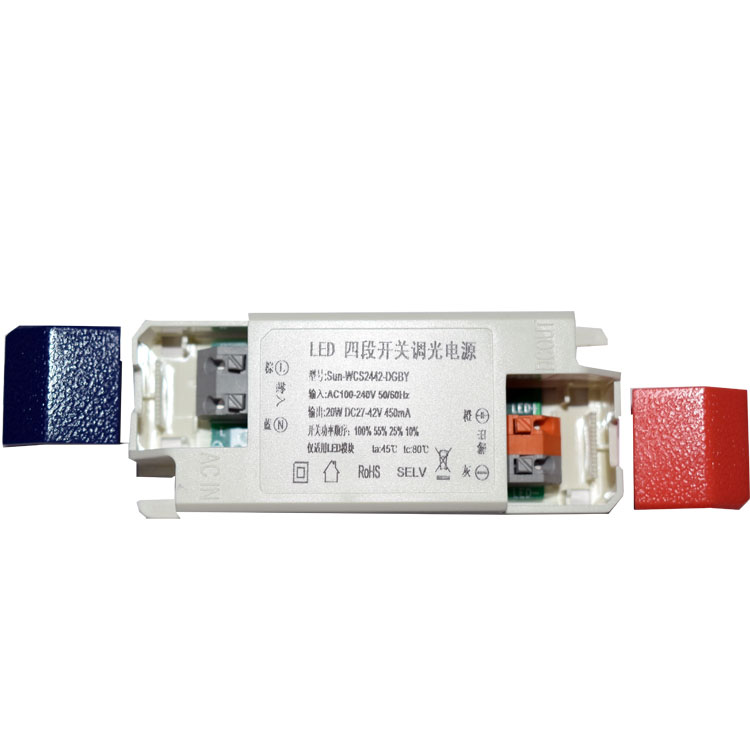

Led four / three section switching dimming power supply

    • Product model: sun-wcs2442-dgby
      Input voltage: ac120-265v
      Output voltage: dc27-42v
      Typical current: 450mA
      Dimension (L * w * h): 96x36x24mm
      Terminals: terminals
      Circuit type: isolated circuit
      Weight: 42g

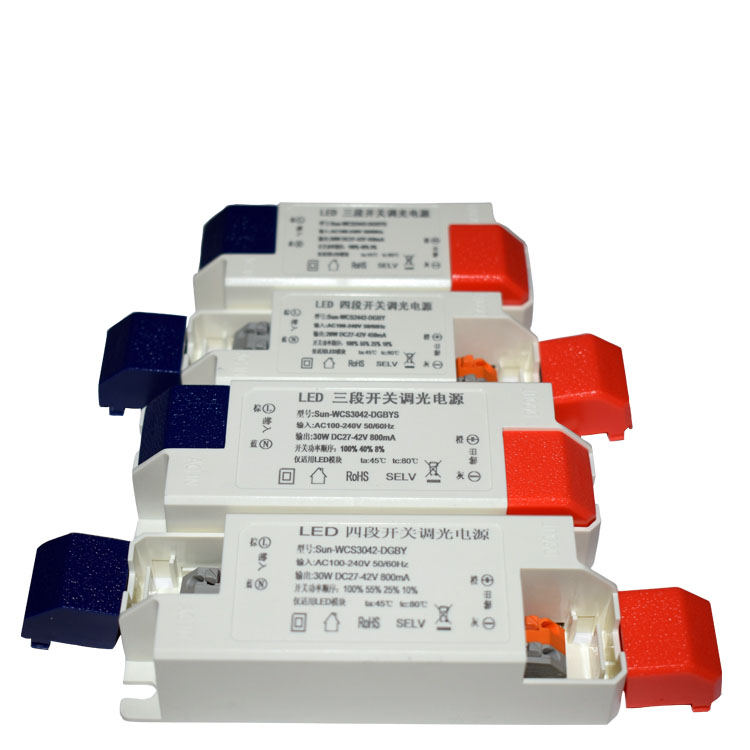

I isolated led three-stage and four-stage switch dimming power supply, compact design II 3-stage or 4-stage switch dimming, 3-stage dimming brightness 100% - 40% - 8% 4-stage dimming brightness 100% - 55% - 25% - 10% III output overload protection V output short circuit protection VI over temperature protection function VII suitable for 24W 20W 15W led downlight ceiling lamp surface plate lamp wall lamp
Product No AC Input Range(Vac) Max. Pout(W) Vout Range

(Vdc)
Full Power Vout Range(Vdc) Iout(mA) THD(Typ.) PF(Typ.) Eff.(Typ.)
Sun-WCS2442-DGBY
120-265
19 27-42
27-42
450
19% 0.6 86%
Sun-WCS2460-DGBY  120-265  19 45-60   45-55  320 19%  0.6   86%
