External ceiling lamp panel lamp wall lamp 3-stage switch brightness adjustment LED driving power supply

Product model: sunshine-qsdtg-1624-240
Input voltage: AC85-265V
Output voltage: dc50-80v
Typical current: 100-220ma
Size (L * w * h): 40x30x20mm
Certification: No
Connector: 4 leads
Circuit type: non isolated circuit

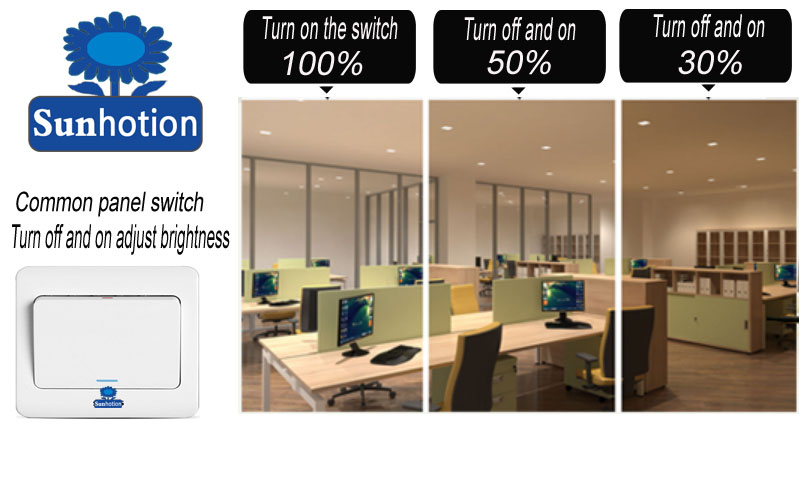

I non isolated LED fluorescent lamp power supply, compact design II 3-section switch dimming dimming brightness 100% - 50% - 20% III output overload protection V output short circuit protection VI over temperature protection function VII suitable for LED downlight ceiling lamp panel lamp wall lamp

Product No	AC Input Range（Vac）	Max. Pout （W）	Vout Range （Vdc）	Full Power Vout Range （Vdc）	Iout（mA）	THD(Typ.)	PF(Typ.)	Eff.(Typ.)
Sunhotion-QSDTG-1624-240	85-265	18	50-80	50-72	220	20%	0.55	89%
