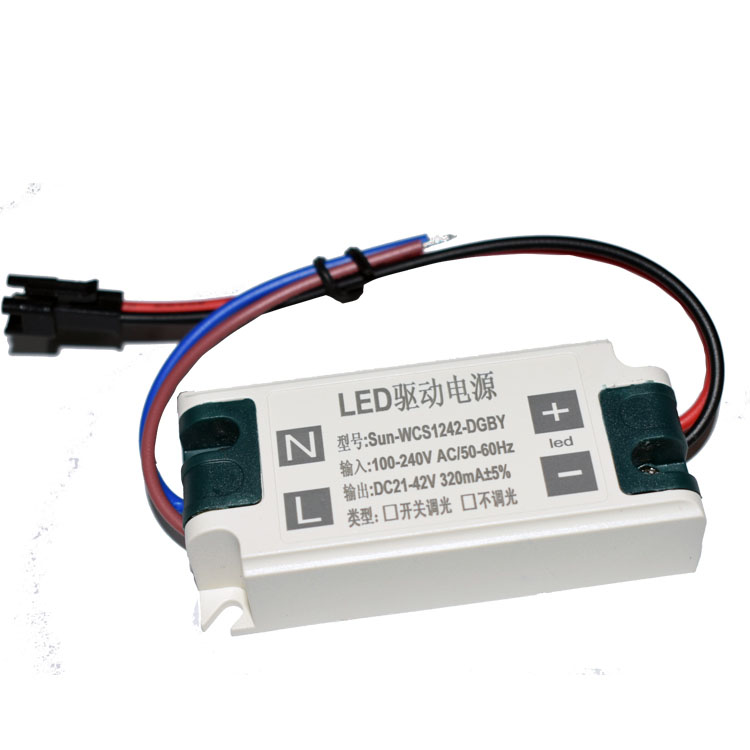

Led three / three section dimming power supply 12W

  • Product model: sun-wcs1242-dgbys
    Input voltage: ac120-265v
    Output voltage: dc21-42v
    Typical current: 100-320ma
    Size (L * w * h): 75x33x20mm
    Certification: no
    Connector: 4 leads
    Circuit type: isolated circuit
    Weight: 30g
I isolated led three-stage and four-stage switch dimming power supply, compact design II 3-stage or 4-stage switch dimming, 3-stage dimming brightness 100% - 40% - 8% 4-stage dimming brightness 100% - 55% - 25% - 10% III output overload protection V output short-circuit protection VI over temperature protection function VII suitable for 7W 10W 12W led downlight ceiling lamp surface plate lamp wall lamp
Product No
AC Input Range(Vac) Max. Pout(W) Vout Range

(Vdc)
Full Power Vout Range

(Vdc)

Iout

(mA)
THD(Typ.) PF(Typ.) Eff.(Typ.)
Sun-WCS1242-DGBYS  120-265  12  21-42  21-42  320   20%  0.6 86%
