I isolated led three-stage and four-stage switch dimming power supply, compact design II 3-stage or 4-stage switch dimming, 3-stage dimming brightness 100% - 40% - 8% 4-stage dimming brightness 100% - 55% - 25% - 10% III output overload protection V output short circuit protection VI over temperature protection function VII suitable for 22W 20W 15W led downlight ceiling lamp surface plate lamp wall lamp
Product No
|
AC Input Range（Vac）
|
Max. Pout（W）
|
Vout Range（Vdc）
|
Full Power Vout Range
（Vdc）
|
Iout
（mA）
|
THD(Typ.)
|
PF(Typ.)
|
Eff.(Typ.)
|
|

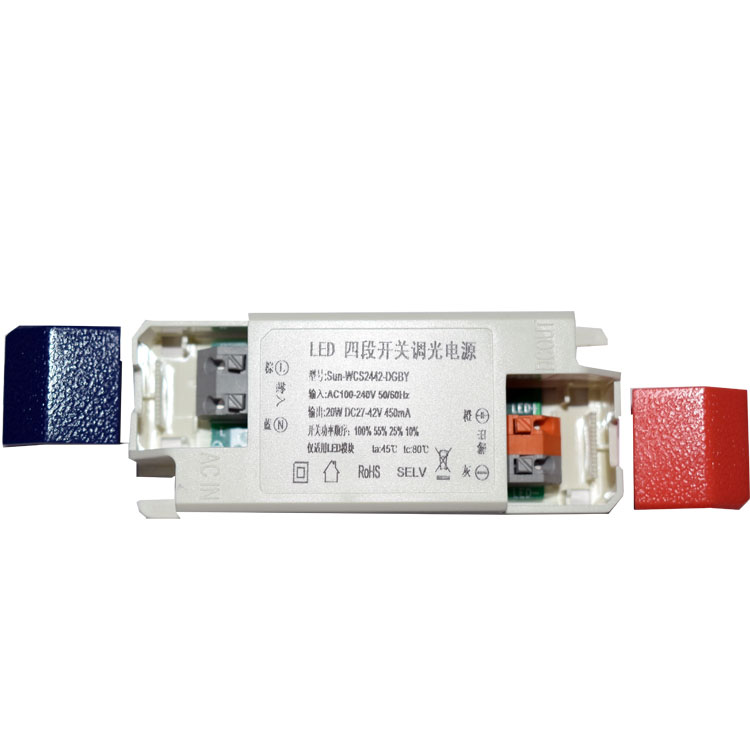

Sun-WCS2442-DGBY
|
120-265
|
19
|
27-42
|
27-42
|
450
|
20%
|
0.6
|
86%
|
Sun-WCS2460-DGBY
|
120-265
|
19
|
45-60
|
45-55
|
320
|
20%
|
0.6
|
86%
|
