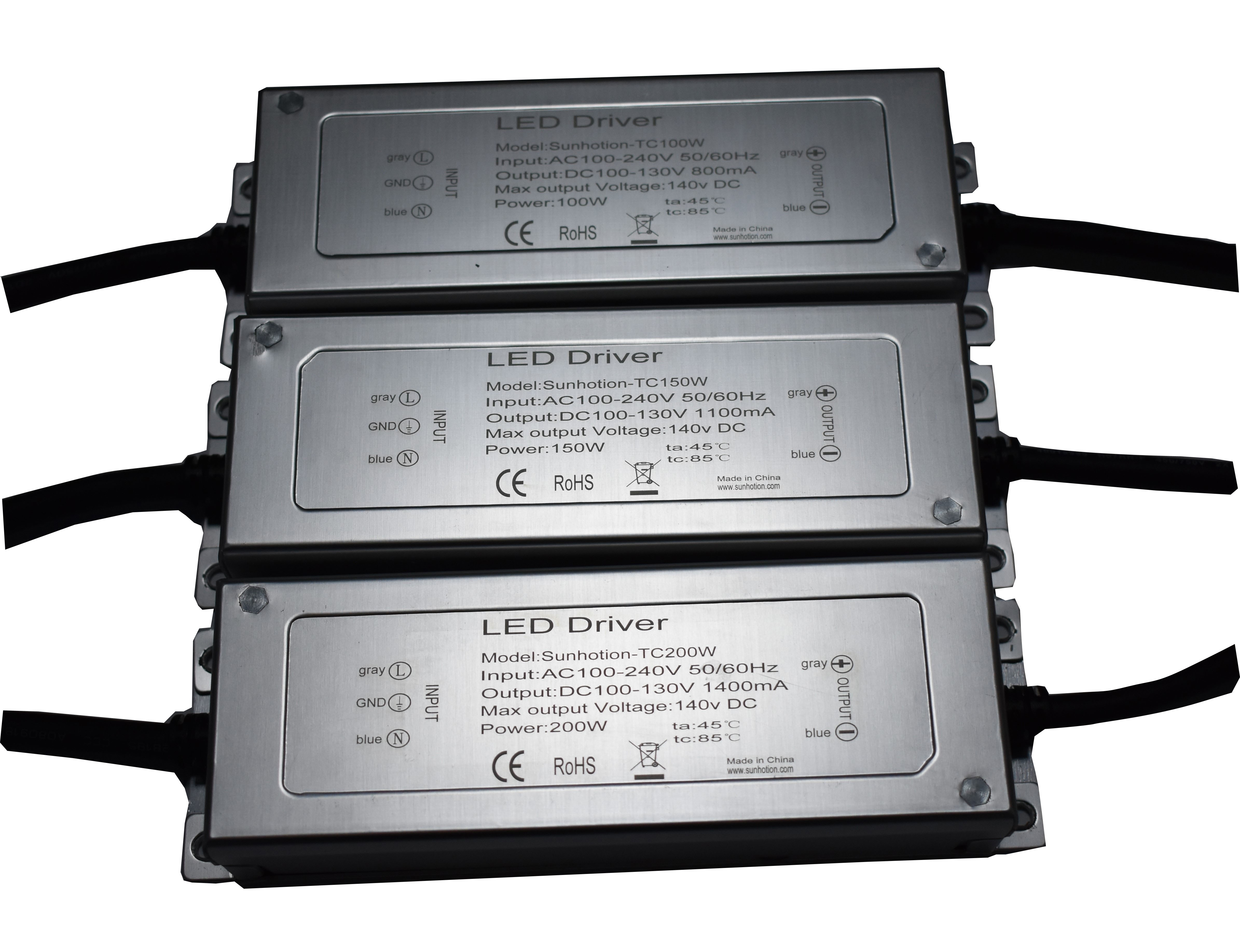

LED street lamp power supply 100W aluminum shell

    • Product model: sunmotion-tc100w
      Input voltage: ac160-240v
      Output voltage: dc100-130v
      Typical current: 600-800ma
      Dimension (L * w * h): 175x64x39mm
      Connector: 4 leads
      Circuit type: non isolated circuit
      Weight: 840g

Ⅰ aluminum shell power supply bipolar PFC, HD digital camera shooting without stroboscopic, warranty for three years Ⅱ safety no load protection device Ⅲ output overload protection Ⅳ output short circuit protection Ⅴ over temperature protection function Ⅵ meets the requirements of EMC and safety regulations Ⅶ economic and convenient installation Ⅷ aluminum shell is suitable for indoor and outdoor LED buried lamps, floodlights, waterproof lamps and street lamps
Product No AC Input Range(Vac) Max. Pout(W) Vout Range(Vdc) Full Power Vout RangeVdc) Iout(mA) THD(Typ.)
PF(Typ.)
Eff.(Typ.)
 Sunhotion-TC100W  160-240  100  100-130  100-130  800  20%  0.95  89%
