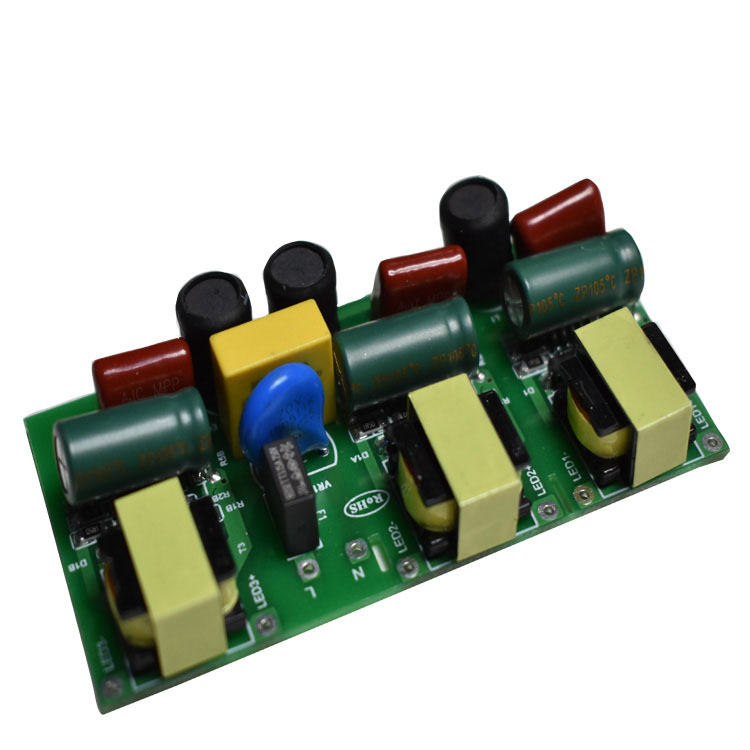

Led three leaf folding lamp driving power supply 45-60w garage lamp power supply

- Product model: sunshine-tcp6080-pgsl
  Input voltage: AC85-265V
  Output voltage: dc45-80v
  Typical current: 160-240ma
  Size (L * w * h): 76x37x12mm
  Features: 3-way output, meeting EMC requirements
  Circuit type: non isolated circuit
  Weight: 37G

Ⅰ 60W non isolated LED power supply, compact design Ⅱ meets EMC requirements Ⅲ output overload protection Ⅴ output short circuit protection Ⅵ over temperature protection function Ⅶ suitable for 40-60W high-power non isolated bulb lamp, three leaf folding lamp, garage lamp, projection lamp and panel lamp

Product No	AC Input Range（Vac）	Max. Pout（W）	Vout RangeVdc）	Full Power Vout Range（Vdc）	Iout （mA）	THD(Typ.)	PF(Typ.	Eff.(Typ.)
Sunhotion-TCP6080-PGSL	85-265	54	45-80	45-75	240	20%	0.98	85%
