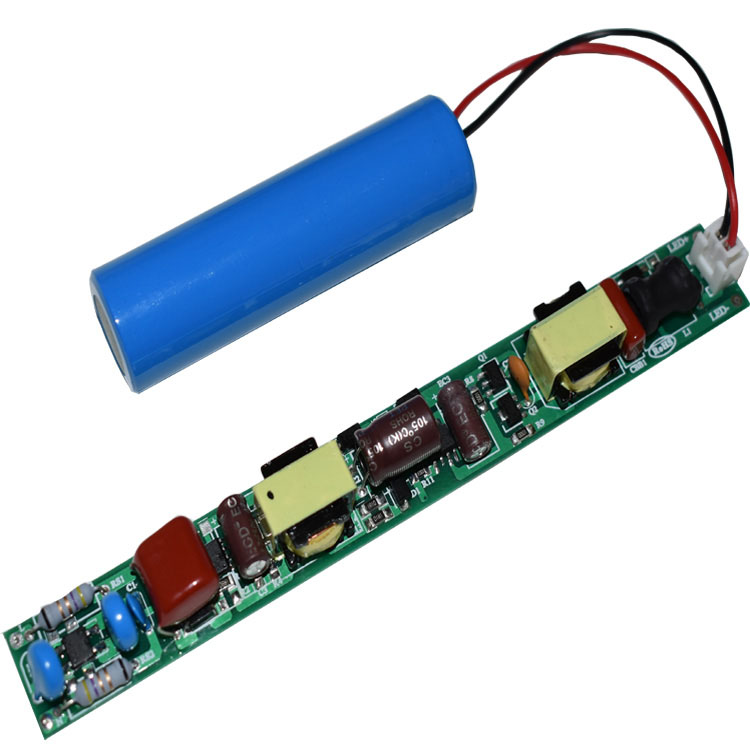

I emergency lamp non isolated LED fluorescent lamp power supply, compact design II, with battery charging port, with overcharge protection, over discharge protection, overcurrent protection, battery reverse connection protection and short circuit protection functions III lamp board output overload protection V lamp board output short circuit protection VI lamp board over temperature protection function VII emergency power up to 4W, Emergency time 3.5H battery voltage 3.7V Ⅷ applicable to T8 T10 non isolated LED fluorescent tube
Product No
|
AC Input Range
（Vac）
|
Max. Pout
（W）
|
Vout Range（Vdc）
|
Full Power Vout Range
（Vdc）
|
Iout（mA）
|
THD(Typ.)
|
PF(Typ.)
|
Eff.(Typ.)
|
|
Sunhotion-YNP1880-PNPT
|
85-265
|
18
|
40-85
|
40-75
|
240
|
20%
|
0.98
|
87%
|
