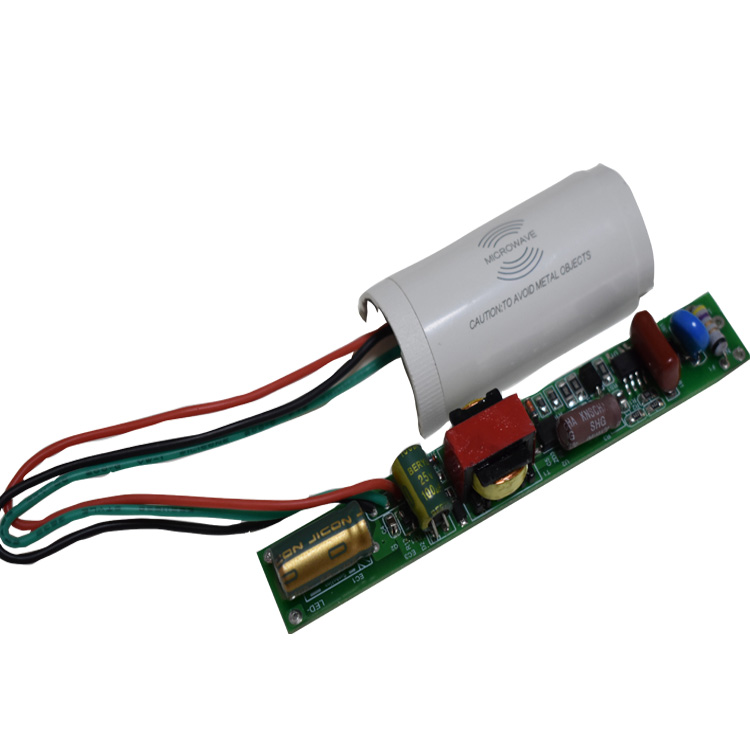

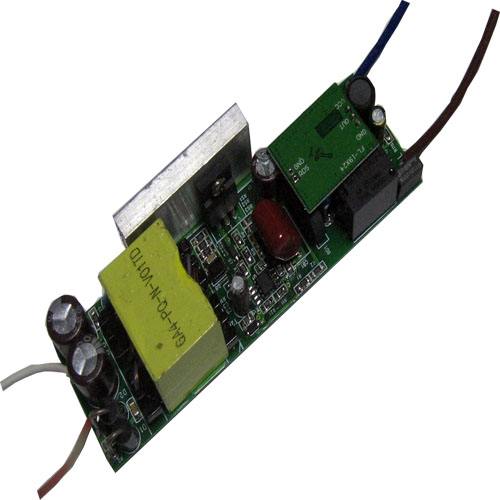

Led human body induction driving power supply external 50W

    • Product model: sunmotion-wob50w-g
      Input voltage: AC85-265V
      Output voltage: dc27-42v
      Typical current: 1000-1400ma
      Dimension (L * w * h): 140x39x26mm
      Connector: 4 leads
      Circuit type: isolated circuit
      Weight: 119g

I is suitable for human body induction LED driven lamps II isolation power supply. The induction module can be external or built into the power shell III Safety no-load protection device IV output overload protection V output short circuit protection VI over temperature protection function VII installation is economical and convenient VIII induction action, 100% light when people come and all dark when people leave, with a delay of 10-60 seconds IX is suitable for LED ceiling lights, downlights, ceiling lights, panel lights Projection lamp, service station lamp, garage lamp, etc
Iout
Product No


AC Input Range

(Vac)
Max. Pout(W) Vout Range

(Vdc)
Full Power Vout Range(Vdc) (mA) THD(Typ.) PF(Typ.) Eff.(Typ.)
Sunhotion-WOB50W-G   85-265  58  27-42  27-40  1400  20%  0.9  88%
