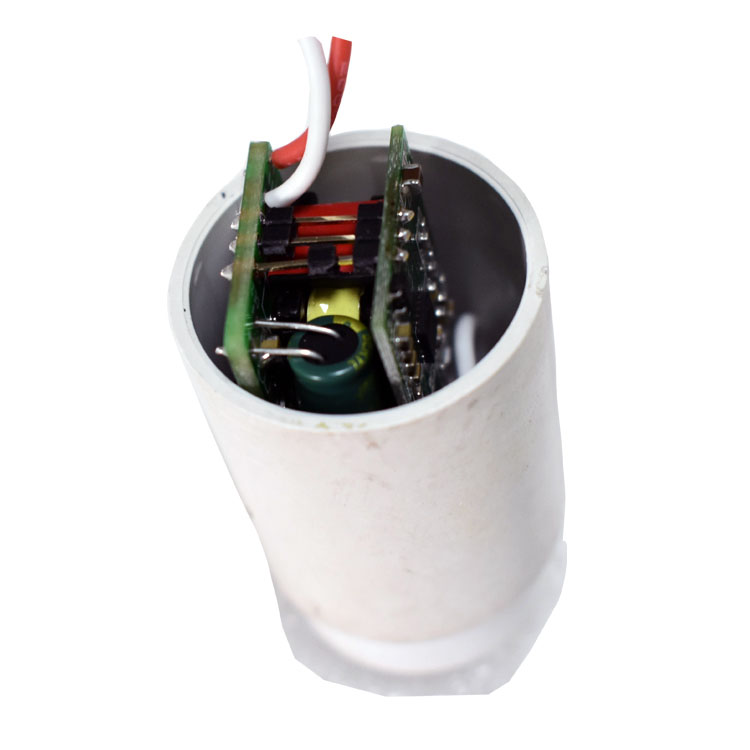

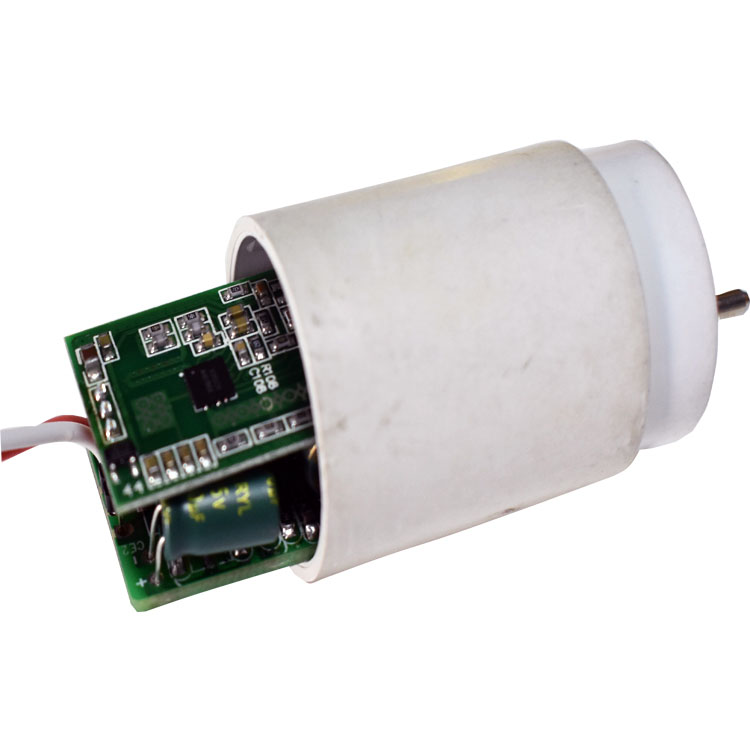

Ⅰ LED fluorescent lamp induction power supply efficiency > 89%, power factor PFC > 0.98, compact design, suitable for human body induction LED driven fluorescent lamp Ⅱ non isolation scheme Ⅲ output overload protection Ⅴ output short circuit protection Ⅵ over temperature protection function Ⅶ induction mode, 30% brightness delay time can be adjusted after 100% people leave, conventional 30 seconds Ⅷ single ended LED fluorescent lamp power supply, LED fluorescent lamp power supply at both ends Plug type LED fluorescent lamp power supply is applicable to T8 T10 lamp tube
Product No
|
AC Input Range（Vac）
|
Max. Pout（W）
|
Vout Range（Vdc）
|
Full Power Vout Range
（Vdc）
|
Iout（mA）
|
THD(Typ.)
|
PF(Typ.)
|
Eff.(Typ.)
|
|
Sunhotion-TNP2080-PGRT
|
85-265
|
19
|
40-80
|
42-75
|
240
|
20%
|
0.98
|
89%
|
